20V 1300MA AC DC Power Supply Adapter 20V 1.3A Switching Power Supply AC Adapter

Energy Efficiency: Ⅴ / Ⅵ     View:
  • Brand:   ABT
  • Type:     ABT013200
  • Voltage:        100~240V
  • Frequency:    50~60Hz
Introduction

20V 1300MA AC DC Power Supply Adapter characteristics

20V 1300MA power Adapter 20V 1.3A AC DC Power Supply Adapter,OEM and ODM service available.20V 1300MA AC DC Power Supply Adapter 20V 1.3A Switching Power Supply AC Adapter,Compact size,light weight,High quality and full power.


20V 1.3A Switching Power Supply AC Adapter Technical parameters

Output voltage : 20V
Output current : 1.3A ( 1300MA )
Input voltage Range : 100~240Vac
Input voltage frequency : 50~60Hz
Protection : OCP, OVP, SCP and OPP
Burn-In Test : Full Load with 4 hours at 40 ± 5℃
Output connector : DC Plug
DC Jack ( Plug ) : According to customer requirements
M.T.B.F.: 30000 HOURS Min ; 25℃ SEE CONDITION
COOLING : SHOULD OPERATE WITHOUT FAN
Ripple and noise ( mVp-p ) : < : 1% of output voltage
operation temperature : -20℃ ~ +45℃, 5% - 90%RH
storage temperature : -25℃ ~ +85℃, 5% - 95%RH
Protection : over voltage protection short circu ited protection over power protection
Leakage current : 0.25 mA MAX 264V AC
Variation voltage : 90~264V
Variation Frequency : 47~63 Hz
Operation model : constant voltage
Output voltage regulation : 5%
Hi-pot test> : 3KV, 15mA, 5S
Standby power dissipation : Less than 0.1W ( Energy Efficiency Level Ⅵ ) ; Less than 0.3W ( Energy Efficiency Level Ⅴ )


20V1.3A Switching Power Supply AC Adapter Plug type

EU,UK,AU,CN,US,KC,JPN,Taiwan,VDE plug, etc

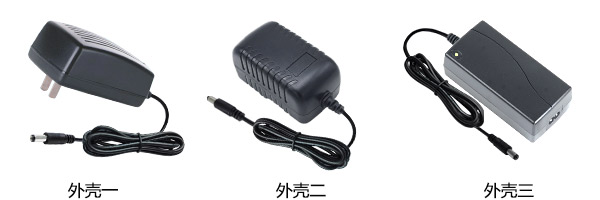

Wall Adapter Power Supply Shell

20V1.3A Adapter Power Supply20V1300MA Adapter Power Supply

20V1300MA Adapter Power Supply20V1.3A Adapter Power Supply


Desktop Adapter Power Supply Shell

20V1.3A Adapter Power Supply20V1.3A Adapter Power Supply


interchangeable plug Adapter Power Supply Shell

 Adapter Adapter Power Supply


Size

Wall Adapter Power Supply Shell size :93.5*46.5*34mm
Desktop Adapter Power Supply Shell size :90*47*29.8mm
Interchangeable plug Adapter Power Supply Shell size :93.5*46.5*34mm


DC Output Connector

DC plugDC plugDC plugDC plugDC plug

DC plugDC plugDC plugDC plugDC plug


20V 1300MA AC DC Power Supply Adapter Safety certification

KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,etc.Meet all related safety standard,Ultra low no-load/standby power consumption,meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.


The Wall Mount 20V power adapter series model

ABTYYY200 Model Inside 200 which represent the output voltage 20V , YYY are 3 digit numbers from 001 to 016 which represent the output current from 0.1 A to 1.6 A , The step value is 0.1 A


20V Series Wall Mount AC DC Adapter Model and Output Specifications

Model Output Specifications Model Output Specifications Model Output Specifications
ABT001200 20V 100MA AC DC Adapter ABT007200 20V 700MA AC DC Adapter ABT013200 20V 1300MA AC DC Adapter
ABT002200 20V 200MA AC DC Adapter ABT008200 20V 800MA AC DC Adapter ABT014200 20V 1400MA AC DC Adapter
ABT003200 20V 300MA AC DC Adapter ABT009200 20V 900MA AC DC Adapter ABT015200 20V 1.5A AC DC Adapter
ABT004200 20V 400MA AC DC Adapter ABT010200 20V 1A AC DC Adapter ABT016200 20V 1600MA AC DC Adapter
ABT005200 20V 0.5A AC DC Adapter ABT011200 20V 1100MA AC DC Adapter

ABT006200 20V 600MA AC DC Adapter ABT012200 20V 1200MA AC DC Adapter
