24V 400MA AC DC Power Supply Adapter 24V 0.4A Switching Power Supply AC Adapter

Energy Efficiency: Ⅴ / Ⅵ     View:
  • Brand:   ABT
  • Type:     ABT004240
  • Voltage:        100~240V
  • Frequency:    50~60Hz
Introduction

24V 400MA AC DC Power Supply Adapter characteristics

24V 400MA AC DC Power Supply Adapter 24V 0.4A Switching Power Supply AC Adapter,High efficiency,24V 400MA AC DC Power Supply Adapter 24V 0.4A Switching Power Supply AC Adapter,low Power consumption,sleek,and compact design,24V 400MA AC DC Power Supply Adapter 24V 0.4A Switching Power Supply AC Adapter with Energy Level CEC ERP Level V and VI.


24V 0.4A Switching Power Supply AC Adapter Technical parameters

Output voltage : 24V
Output current : 400MA
Input voltage Range : 100~240Vac
Input voltage frequency : 50~60Hz
Output voltage regulation : 5%
Hi-pot test> : 3KV , 10mA , 5S
Ripple and noise ( mVp-p ) : < : 1% of output voltage
Variation voltage : 90~264V
Variation Frequency : 47~63 Hz
operation temperature : -20℃ ~ +45℃ , 5% - 90%RH
storage temperature : -25℃ ~ +85℃ , 5% - 95%RH
Protection : OCP , OVP , SCP and OPP
Burn-In Test : Full Load with 4 hours at 40 ± 5℃
Output connector : USB or DC Plug
DC Jack ( Plug ) : According to customer requirements
M.T.B.F.: 30000 HOURS Min ; 25℃ SEE CONDITION
COOLING : SHOULD OPERATE WITHOUT FAN
Protection : over voltage protection short circu ited protection over power protection
Leakage current : 0.25 mA MAX 264V AC
Standby power dissipation : Less than 0.1W ( Energy Efficiency Level Ⅵ ) ; Less than 0.3W ( Energy Efficiency Level Ⅴ )
Operation model : constant voltage


24V 400MA AC DC Power Supply Adapter Safety certification

KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,etc.Meet all related safety standard,Ultra low no-load/standby power consumption,meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements


24V 0.4A Switching Power Supply AC Adapter Plug type

EU,UK,AU,CN,US,KC,JPN,Taiwan,VDE plug, etc

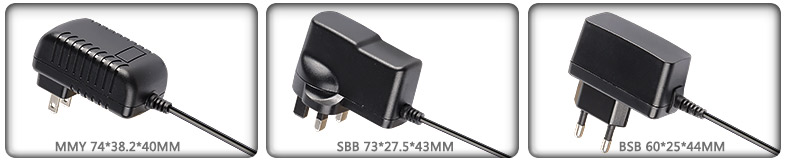

Wall Adapter Power Supply Shell

24V400MA Adapter Power Supply24V0.4A Adapter Power Supply

24V0.4A Adapter Power Supply24V400MA Adapter Power Supply


interchangeable plug Adapter Power Supply Shell

24V Adapter Power Supply24V电源供应器


Size

① Wall Adapter Power Supply Shell size: 62*39*26mm     ② interchangeable plug Adapter Power Supply Shell size: 62*39*26mm


DC Output Connector

DC plugDC plugDC plugDC plugDC plug

DC plugDC plugDC plugDC plugDC plug


The 24V Wall power adapter series model

ABTYYY240 Model Inside 240 which represent the output voltage 24V , YYY are 3 digit numbers from 001 to 015 which represent the output current from 0.1 A to 1.5 A , The step value is 0.1 A


24V Series Wall Mount AC DC Adapter Model and Output Specifications

Model Output Specifications Model Output Specifications Model Output Specifications
ABT001240 24V 100MA AC DC Adapter ABT006240 24V 600MA AC DC Adapter ABT011240 24V 1100MA AC DC Adapter
ABT002240 24V 200MA AC DC Adapter ABT007240 24V 700MA AC DC Adapter ABT012240 24V 1200MA AC DC Adapter
ABT003240 24V 300MA AC DC Adapter ABT008240 24V 800MA AC DC Adapter ABT013240 24V 1300MA AC DC Adapter
ABT004240 24V 400MA AC DC Adapter ABT009240 24V 900MA AC DC Adapter ABT014240 24V 1400MA AC DC Adapter
ABT005240 24V 0.5A AC DC Adapter ABT010240 24V 1A AC DC Adapter ABT015240 24V 1.5A AC DC Adapter
